CSD17308Q3
Manufacturer:
Texas Instruments
Mfr.Part #:
CSD17308Q3
Datasheet:
Description:

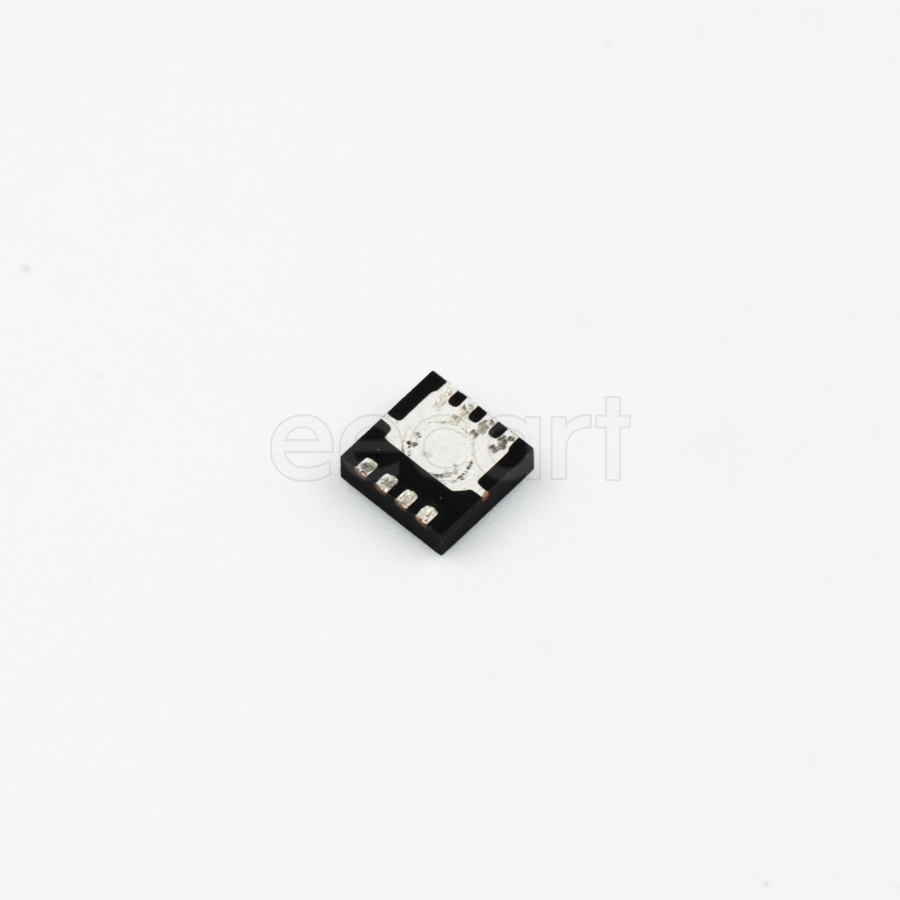

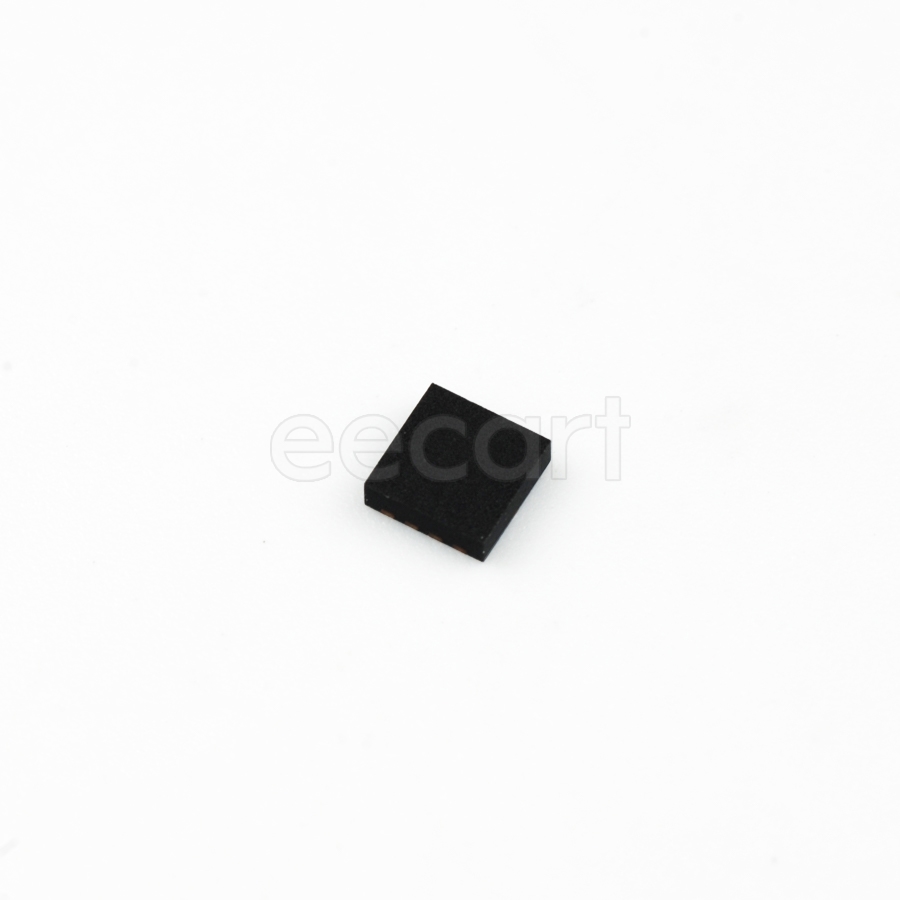

MOSFETs VSON-CLIP-8 SMD/SMT N-Channel number of channels:1 2.7 W 30 V Continuous Drain Current (ID):14 A 3.9 nC
| Parameter | Value |
|---|---|
| Length | 3.3 mm |
| Width | 3.3 mm |
| Max Operating Temperature | 150 °C |
| Min Operating Temperature | -55 °C |
| Number of Pins | 8 |
| Height | 1.1 mm |
| Packaging | Reel |
| Thickness | 1 mm |
| Radiation Hardening | No |
| RoHS | Compliant |
| REACH SVHC | No SVHC |
| Contact Plating | Tin |
| Number of Elements | 1 |
| Lifecycle Status | Active |
| Max Power Dissipation | 2.7 W |
| Power Dissipation | 2.7 W |
| Threshold Voltage | 1.3 V |
| Number of Channels | 1 |
| Input capacitance | 700 pF |
| Continuous Drain Current (ID) | 14 A |
| Rds On Max | 10.3 mΩ |
| Drain to Source Voltage (Vdss) | 30 V |
| Turn-On Delay Time | 4.5 ns |
| Turn-Off Delay Time | 9.9 ns |
| Element Configuration | Single |
| Fall Time | 2.3 ns |
| Rise Time | 5.7 ns |
| Gate Charge | 3.9 nC |
| Drain to Source Resistance | 9.4 mΩ |
| Max Junction Temperature (Tj) | 150 °C |
| Nominal Vgs | 1.3 V |
| Gate to Source Voltage (Vgs) | 10 V |
| Drain to Source Breakdown Voltage (Vds) | 30 V |
| Gate to Source Threshold Voltage | 900 mV |
| FET Type(Transistor Polarity) | N-Channel |
Stock: 6236
Distributors
pcbx
pcbxUnit Price$0.83869
Ext.Price$0.83869
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.83869 | $0.83869 |
| 10 | $0.52920 | $5.29200 |
| 25 | $0.46130 | $11.53250 |
| 50 | $0.40211 | $20.10550 |
| 100 | $0.35052 | $35.05200 |
| 300 | $0.30966 | $92.89800 |
| 500 | $0.27357 | $136.78500 |
| 1000 | $0.24879 | $248.79000 |
| 3000 | $0.23059 | $691.77000 |
| 5000 | $0.21373 | $1068.65000 |
| 10000 | $0.21031 | $2103.10000 |
